Hydraulic Guide Tapes Phenolic Wear Strips
Description
Standard Material
(Type: C380) * Other materials are avaiable on enquiry. |

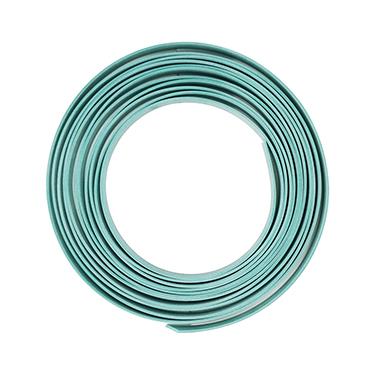

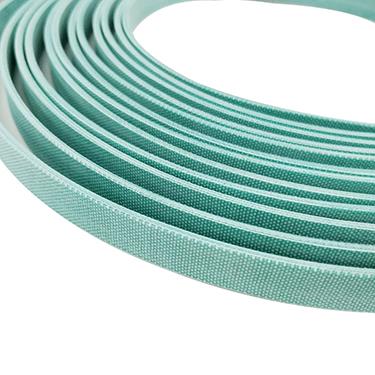

Jinbond C380 phenolic guide strip is a turquoise colored composite material made of a thermosetting polymer, reinforced by a fine plastic mesh and lubricant additives impregnated throughout the material.
Phenolic guide tape is uitable for all commonly used hydraulic fluids such as mineral or synthetic oils, as well as water based fluids.
It is an excellent electrical insulator and features enhanced sliding properties in various media.
 |  |
Operating Condition
| Temperature | -50℃/130℃ |
| Slide speed | 1m/s |
| Pressure | max.100N/mm2 at25℃; max.50N/mm2 >60℃ |
| Max. compressive strength | 330MPa(static),100Mpa(dynamic) |
| Shear strength | 80Mpa |
| Color | Turquoise |
| Media | hydraulic oil(mineral oil based), flammable hydraulic fluid, water,etc. |
Application
C380 guide strip is widely used as a bearing element for heavy duty hydraulic equipment, such as:
- Hydraulic actuators
- Mobile hydraulics
- Excavators
- Construction equipment
- Forestry machinery
- Mining
- Steel mills
- Presses
- Water locks
- Marine engineering
Advantages
Good vibration absorbing ability
Dimensionally stable
Stable chemical properties, acid and alkali resistance.
Excellent insulation
Good dry running properties
High wear resistance
Long service life

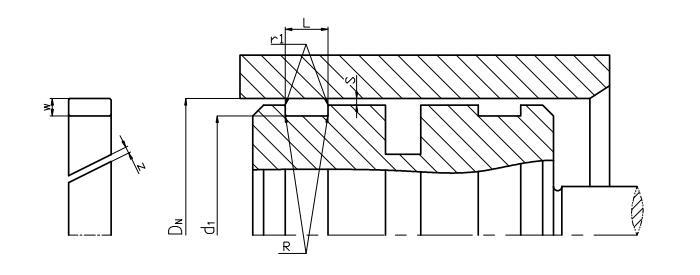

Technical Drawing
Specification List (WxL)
| Groove (metic: mm) | Product (metric: mm) |
| 5.6 X 2.0 | 5.4 X 2.0 |
| 8.1 X 2.0 | 7.9 X 2.0 |
| 9.7 X 2.0 | 9.5 X 2.0 |
| 5.6 X 2.5 | 5.4 X 2.5 |
| 6.3 X 2.5 | 6.1 X 2.5 |
| 8.1 X 2.5 | 7.9 X 2.5 |
| 9.7 X 2.5 | 9.5 X 2.5 |
| 10.0 X 2.5 | 9.8 X 2.5 |
| 15.0 X 2.5 | 14.8 X 2.5 |
| 20.0 X 2.5 | 19.5 X 2.5 |
| 25.0 X 2.5 | 24.5 X 2.5 |
| 30.0 X 2.5 | 29.5 X 2.5 |
| 40.0 X 2.5 | 39.5 X 2.5 |
| 50.0 X 2.5 | 49.5 X 2.5 |
| 9.7 X 3.0 | 9.5 X 3.0 |
| 15.0 X 3.0 | 14.8 X 3.0 |
| 20.0 X 3.0 | 19.5 X 3.0 |
| 25.0 X 3.0 | 24.5 X 3.0 |
| 30.0 X 3.0 | 29.5 X 3.0 |
| 40.0 X 3.0 | 39.5 X 3.0 |
| 50.0 X 3.0 | 49.5 X 3.0 |
| 9.7 X 4.0 | 9.5 X 4.0 |
| 15.0 X 4.0 | 14.8 X 4.0 |
| 20.0 X 4.0 | 19.5 X 4.0 |
| 25.0 X 4.0 | 24.5 X 4.0 |
| 30.0 X 4.0 | 29.5 X 4.0 |
| 35.0 X 4.0 | 34.5 X 4.0 |
| 40.0 X 4.0 | 39.5 X 4.0 |
| 50.0 X 4.0 | 49.5 X 4.0 |
FAQ
1. How long is the length of this phenolic bearing strip?
General 10 meters per roll, other length is available on enquiry.
2. Do you also sell phenolic reinforced fabric guide rings?
Yes, we sell also the phenolic rings a lot every year.
3. What is the packing method for the tapes?
Firstly wrap with plastic film, put label on outside then pack in carton. We accept custom design on both the label and carton.
4. Are you manufacturer of C380 wear tapes?
We are original manufacturer of PTFE, PU seals but for this item, it is purchased from TTS then processed in our factory.
