Hey there! As a supplier of hydraulic wiper rings, I've seen firsthand how crucial these little components are in the smooth operation of hydraulic systems. But like all parts, they don't last forever. So, what are the signs that hydraulic wiper rings need to be replaced? Let's dive in and find out.
1. Visible Wear and Tear
One of the most obvious signs that your hydraulic wiper rings are due for a change is visible wear and tear. Over time, the constant friction between the wiper ring and the piston rod can cause the rubber or other materials to break down. You might notice that the edges of the wiper ring are frayed, or there are chunks missing from the seal. This kind of damage can compromise the ring's ability to keep contaminants out of the hydraulic system.
If you take a close look at the wiper ring and see cracks, cuts, or excessive abrasion, it's a clear indication that it's time to replace it. Sometimes, the wear might not be immediately obvious to the naked eye. You can use a magnifying glass to get a better look at the surface of the ring. Any signs of pitting or uneven wear can also signal that the ring is no longer performing as it should.
2. Increased Contamination in the Hydraulic System
Hydraulic wiper rings are designed to scrape dirt, dust, and other contaminants off the piston rod as it moves in and out of the cylinder. When a wiper ring is worn or damaged, it can't do this job effectively. As a result, you'll start to see an increase in the amount of contamination in the hydraulic fluid.
You can check the hydraulic fluid for signs of contamination by taking a sample and looking at it closely. If the fluid looks cloudy, has particles floating in it, or has a strange odor, it could be a sign that the wiper rings are allowing contaminants to enter the system. Another way to tell is by monitoring the performance of the hydraulic system. If you notice that the system is becoming less efficient, or if there are sudden drops in pressure, it could be due to contamination caused by faulty wiper rings.
3. Leakage around the Cylinder
Leakage is another tell - tale sign that your hydraulic wiper rings need to be replaced. A properly functioning wiper ring helps to prevent hydraulic fluid from leaking out of the cylinder. When the ring is worn or damaged, it can't create a tight seal around the piston rod, and fluid can start to seep out.
You might notice small droplets of hydraulic fluid around the cylinder or along the piston rod. In more severe cases, you could see a steady stream of fluid leaking. Leakage not only wastes hydraulic fluid but can also cause damage to other components in the system. If you see any signs of leakage, it's important to check the wiper rings right away.
4. Unusual Noise or Vibration
When hydraulic wiper rings are in good condition, they help to ensure smooth operation of the piston rod. But when they start to wear out, they can cause the piston rod to move unevenly. This can lead to unusual noise or vibration in the hydraulic system.
If you hear a rattling, knocking, or grinding noise coming from the hydraulic cylinder, it could be a sign that the wiper rings are not functioning properly. Similarly, if you feel excessive vibration when the system is in operation, it's worth checking the wiper rings. These symptoms can also be caused by other issues in the hydraulic system, but worn wiper rings are a common culprit.
5. Reduced System Performance
A worn - out hydraulic wiper ring can have a significant impact on the overall performance of the hydraulic system. If you notice that the system is slower to respond, or if it can't generate the same amount of force as it used to, it could be due to faulty wiper rings.
For example, if you're using a hydraulic press, and it takes longer to complete a pressing operation or if it can't apply as much pressure as before, the wiper rings might be the problem. The reduced performance can be a result of contamination in the system, leakage, or uneven movement of the piston rod caused by the worn rings.
Types of Hydraulic Wiper Rings and Their Replacement Considerations
There are different types of hydraulic wiper rings available, each with its own characteristics and replacement requirements.
Teflon Scrapers
Teflon scrapers are known for their excellent scraping ability and low friction. They are often used in applications where high - speed movement of the piston rod is required. If you're using Teflon Scrapers, you need to pay special attention to the signs of wear. Teflon can wear down over time, especially if it's exposed to high - pressure or abrasive environments.

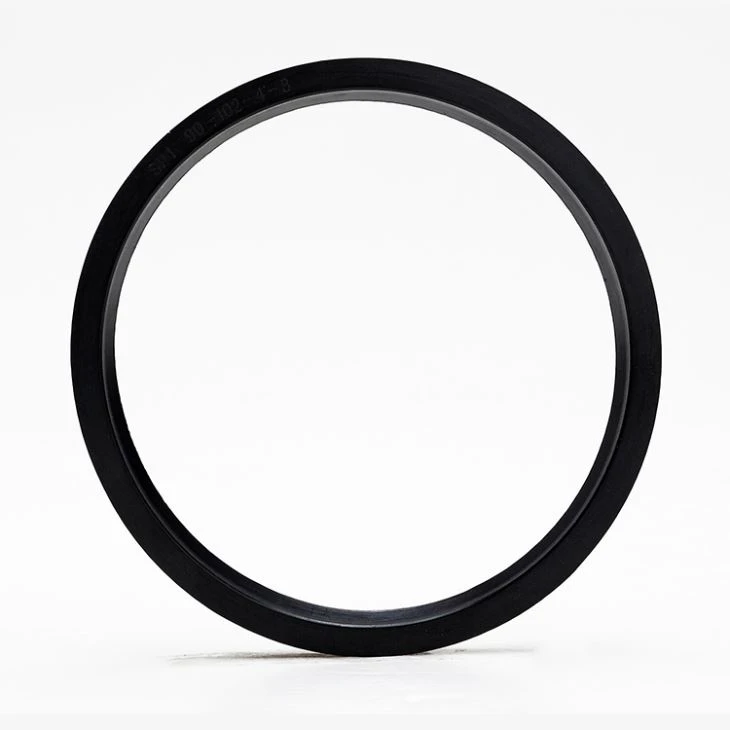

Scraper Seals
Scraper seals are designed to provide a more robust scraping action. They are typically made of materials like polyurethane or rubber. When using Scraper Seals, look for signs of hardening or cracking in the material. These seals can also be affected by chemical exposure, so if your hydraulic system uses special fluids, make sure the scraper seals are compatible.
Single Lip Metal Cased Wiper Seals
Single Lip Metal Cased Wiper Seals offer good durability and stability. The metal casing provides additional support to the rubber lip. When inspecting Single Lip Metal Cased Wiper Seals, check for any signs of corrosion on the metal casing. Also, look for signs of wear on the rubber lip, as this is the part that comes into contact with the piston rod.
Importance of Timely Replacement
Replacing hydraulic wiper rings in a timely manner is crucial for the longevity and performance of your hydraulic system. Ignoring the signs of wear can lead to more serious problems, such as damage to the piston rod, cylinder walls, and other components in the system.
A damaged piston rod can be expensive to repair or replace. And if the contamination in the hydraulic system is not addressed, it can cause premature wear and failure of other parts, leading to costly downtime. By replacing the wiper rings as soon as you notice the signs, you can avoid these issues and keep your hydraulic system running smoothly.
How to Replace Hydraulic Wiper Rings
If you've determined that your hydraulic wiper rings need to be replaced, here are the general steps to follow:
- First, make sure to shut down the hydraulic system and relieve all pressure. This is a safety measure to prevent any accidents during the replacement process.
- Remove the cylinder end cap or any other components that are blocking access to the wiper rings. Be careful not to damage any other parts while doing this.
- Use a suitable tool, like a seal pick, to carefully remove the old wiper rings. Take note of the orientation of the rings so that you can install the new ones correctly.
- Clean the area around the piston rod and the cylinder where the wiper rings will be installed. Make sure there are no contaminants left behind.
- Lubricate the new wiper rings with a compatible hydraulic fluid. This will make it easier to install them and will also help to ensure a good seal.
- Install the new wiper rings, following the correct orientation. Make sure they are seated properly and are not twisted or damaged during installation.
- Reassemble the cylinder and any other components that you removed. Then, test the hydraulic system to make sure everything is working correctly.
Contact Us for Your Hydraulic Wiper Ring Needs
If you're experiencing any of the signs mentioned above and think your hydraulic wiper rings need to be replaced, we're here to help. As a supplier of high - quality hydraulic wiper rings, we offer a wide range of products to suit different applications and requirements. Whether you need Teflon scrapers, scraper seals, or single lip metal cased wiper seals, we've got you covered.
Don't let worn - out wiper rings cause problems for your hydraulic system. Contact us today to discuss your needs and get the right wiper rings for your equipment. We can provide you with expert advice on installation and maintenance, and we're committed to providing you with the best products at competitive prices.
