Piston Rod Seals

Piston Rod U Seals

The JBUN seal is a single acting piston and rod seal with double lip, suitable for light and medium duty hydraulic reciprocating system. Characteristics Application Suggestion JBUN piston and rod seal has been widely used in various industrial fields, such...
Send Inquiry

Standard Material


Polyurethane PU

* Other material combinations can be customized

according to working conditions.



Product Introduction

The JBUN seal is a single acting piston and rod seal with double lip, suitable for light and medium duty hydraulic reciprocating system.


Characteristics


Small compression deformation

High extrusion resistance

Excellent wear resistance

Easy to install

Tear resistance

No effect on heavy load and piston rod bending



Application Suggestion

JBUN piston and rod seal has been widely used in various industrial fields, such as mobile machinery, light industrial machinery, agricultural machinery, injection molding machines, forklifts, cranes, autos, forestry and mining machinery. It also has good mechanical properties under harsh working conditions.


Operating Condition

Speed

Pressure

Temperature

Media

Supplied Diameter

0.5m/s

0-35Mpa

-45℃~110℃

Petroleum-based hydraulic oil, flame retardant hydraulic oil

5mm-400mm

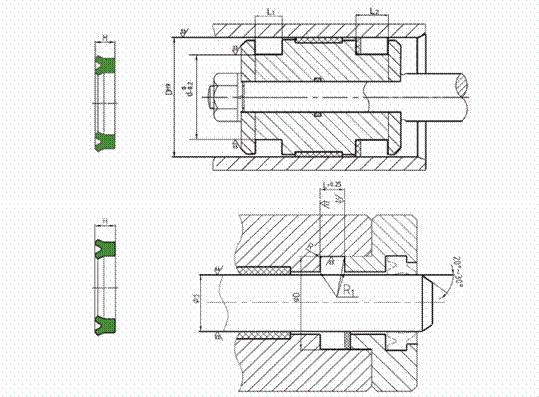

Technical Drawing

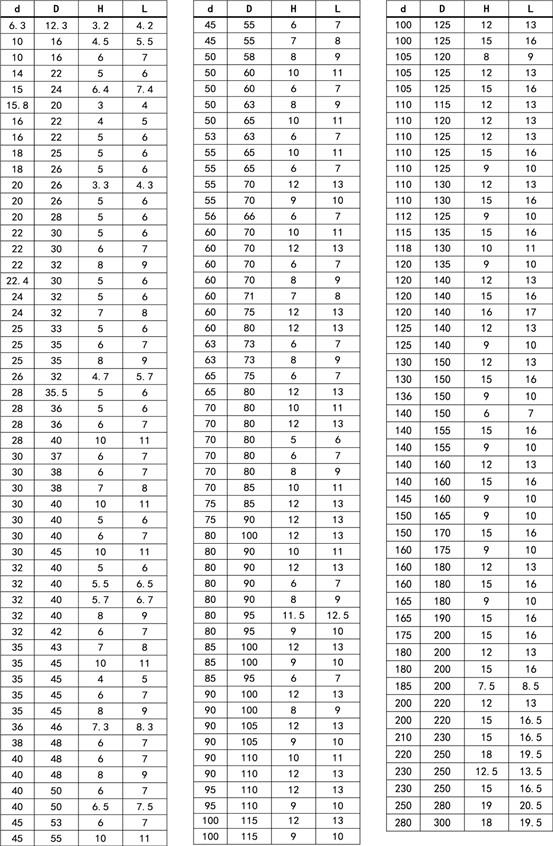

Specification List


* Further specifications on request,we also supply turning products or semi-finished products.


FAQ

1. Are you seal manufacturer or trading company?

We are manufacturer of hydraulic seals located in Guangzhou,China.

2. What colors are your u rings?

The performance of this material is stable, and polyurethane materials with different hardness can be selected according to working conditions.

3. Can you produce seals according to my machine working conditions?

Yes,please provide the operating conditions like temperature/speed/pressure/media...We will recommend proper seal solutions accordingly.

4. What’s your general packing method of PU seals?

Our general packing method of PU seals is total sealed poly bag with label,then proper quantity to a carton.
